Brand Name : FUNPACK
Model Number : FH1001
Certification : MSDS UN38.3
Place of Origin : CHINA,GuangDong
MOQ : 1PCS
Price : Negotiated The Price
Payment Terms : T/T, D/P, D/A, L/C
Supply Ability : 100PCS /Month
Delivery Time : 30-45 work days
Packaging Details : Customer Requirements
Type Name : LifePO4 Battery Pack
Type : FP1001
Rated Voltage : 51.2V
Capacity : 100AH
Energy : 5kWh
Cycle Life : 2000 Cycles
Net Weight : 75kg
Dimension(L*W*H) : 530*320*450mm

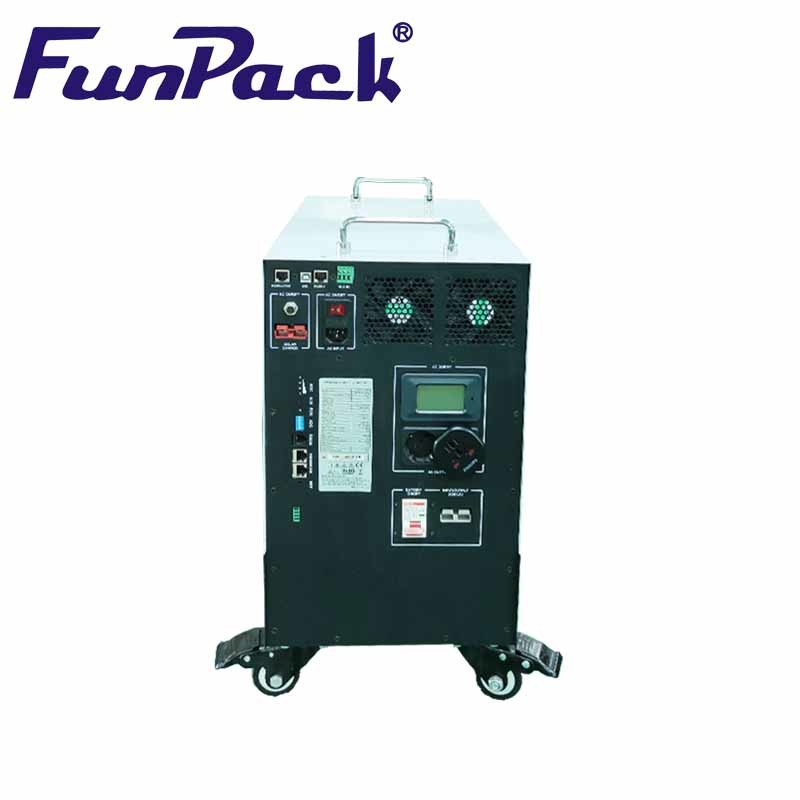

This battery uses 3.2V 100Ah cell, the cell size is 47.8*173.9*132.7mm. PCM and inverter are installed inside the battery. On the outside of the battery is a solar charging port, a display screen, a multi-function discharge port, a discharge DC and a switch.
Item | Specification |
Energy | 5KWh |
Capacity | 100AH |
Rated Voltage | 51.2V |
Working Voltage Range | 32V-58.4V |
Max Charge Current | 50A |
Max Discharge Current | 100A |
Standard Charge Current | 20A |
DOD | 100% |
Nominal Operation Altitude | <3000m |
Dimension(L*W*H) | 530*320*450mm |
Weight | 75kg |
This product is mainly used for home or business Energy storage. When the power goes out, it can power our equipment.
Q1: Are you factory?
A: Yes, we are professional manufacturer for polymer batteries since 2017.
Q2: When you ship my order?
A: Normally 35-45days after payment confirmed, but it can be negotiated based on order qty and production schedule.
Q3: Can I get the pre-production sample?
A: Yes, we will send you sample for approval first, after you confirm, then we will start mass production order.
Q4: Can battery size customized available?
A: Yes, Please send up the capacity and max battery size, so that we can search our model for you.
Q5: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we’ll regard your inquiry priority.
![]() |
LFP Energy Storage Battery 51.2V 5kWh 100Ah White FH1001 Lifepo4 Battery Powerwall Images |
